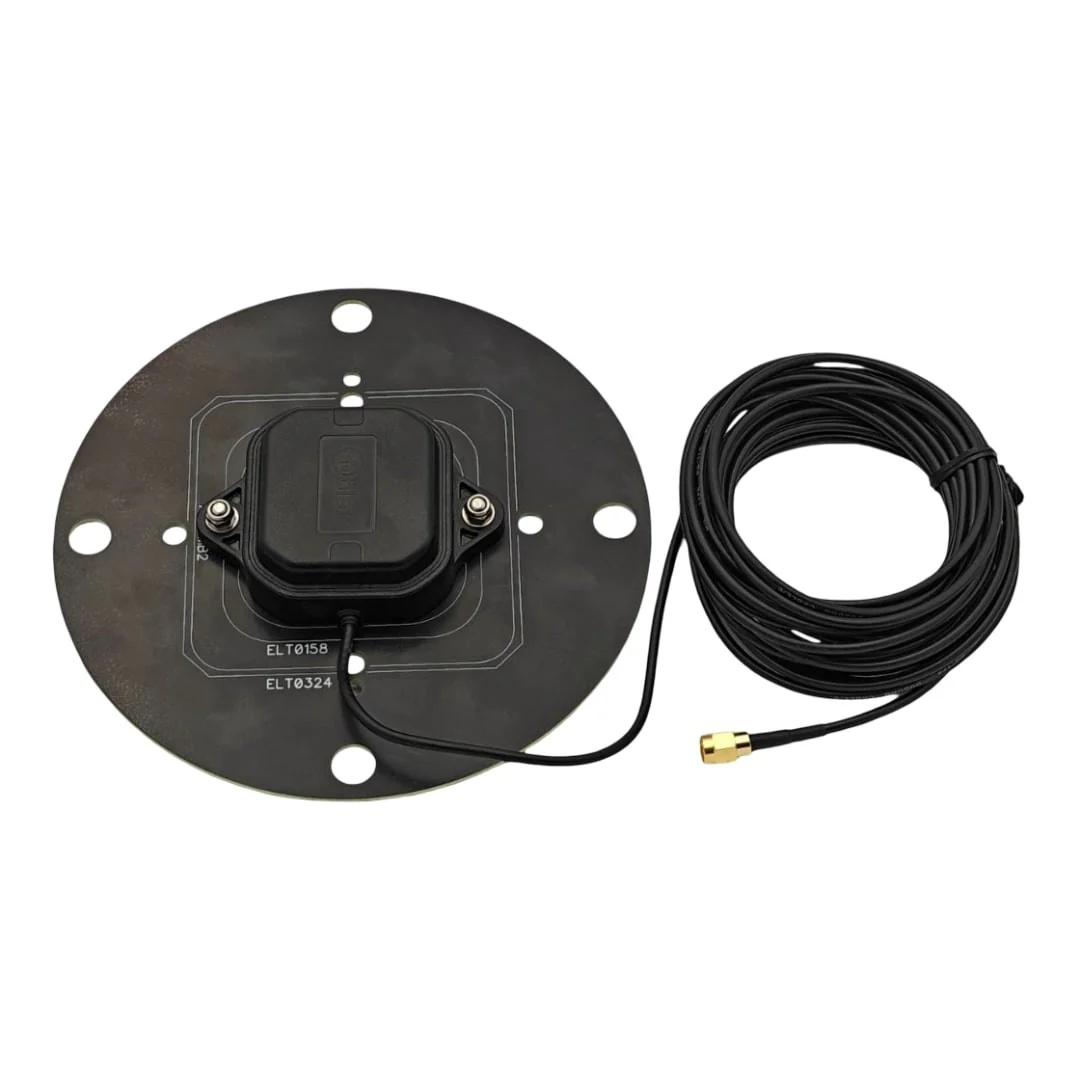

ANN-MB Multi-Band, High Precision GNSS antenna

The ANN-MB multi-band (L1, L2/E5b) active GNSS antennas are designed to reduce time to market for the next generation of high precision GNSS applications, which require highly accurate location abilities. The compact design, excellent price-performance ratio, and versatile mounting and connector choices provide customers with fast, easy, and reliable multi-band antenna solutions. The ANN-MB antenna is a perfect match to the latest u-blox F9 platform including the ZED-F9P module, thus providing customers with the valuable antenna solution they need to minimize design-in efforts. IP rating IP67

---

Signal Received:

• GPS L1/L2
• GLONASS G1/G2/G3
• GALILEO E1/E5b
• BDS B1I/B2I/B1C/B2b
• SBAS L1
• QZSS L1/L2

Highlights:

• Multi-band (L1, L2/E5b) active GNSS antennas with excellent price-performance ratio 28 dB
• Supports GPS, GLONASS, Galileo, and BeiDou
• Fast and easy antenna solution for high precision applications
• Versatile mounting and connector options
• IP rating IP67

Amplifier characteristics:

• Gain without cable 28 ± 3.0 dB
• LNA Noise figure Max 3.2 dB
• Axial Ratio: 2.0dB max. @Zenith
• Output VWSR Max.: 2.0
• DC Voltage: 3 - 5 V
• DC Current typ.: 15 mA

Mechanical Data:

• Weight: 173 g (without cable)
• Size: 82 x 60 x 22.5 mm
• Cable lenght: 5 meters
• Connectors: SMA
• Housing color: Black

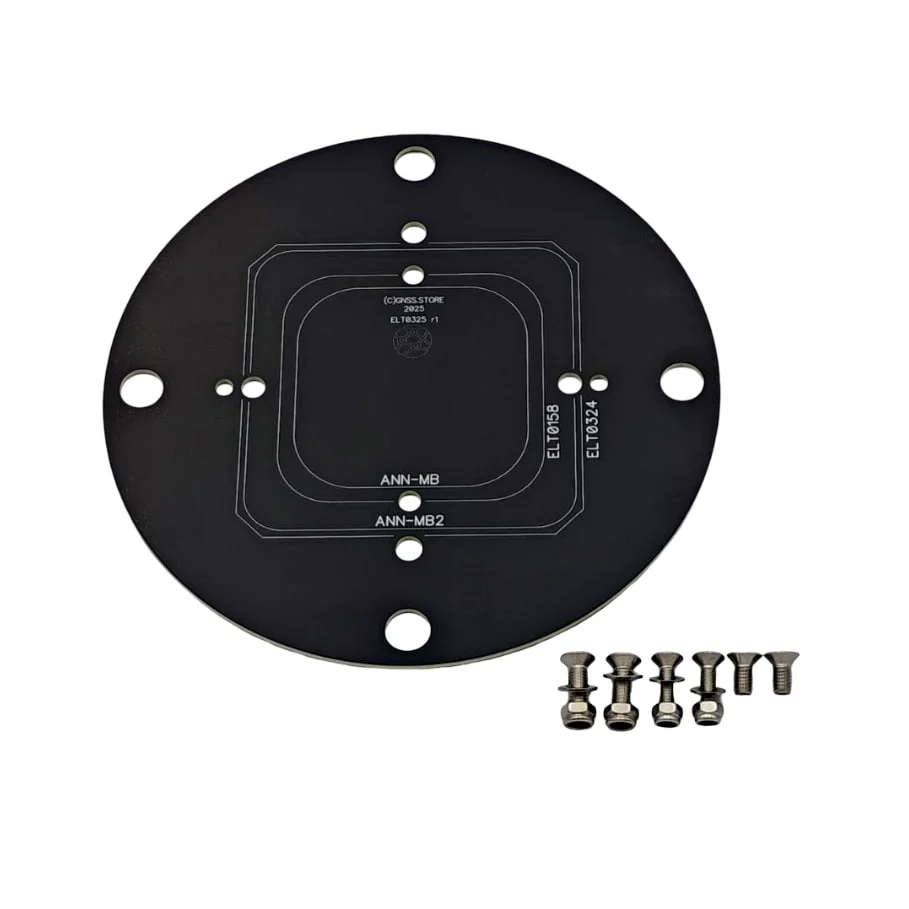

• Mounting: magnetic base, screw mount 2 x M4 distance 68 mm
