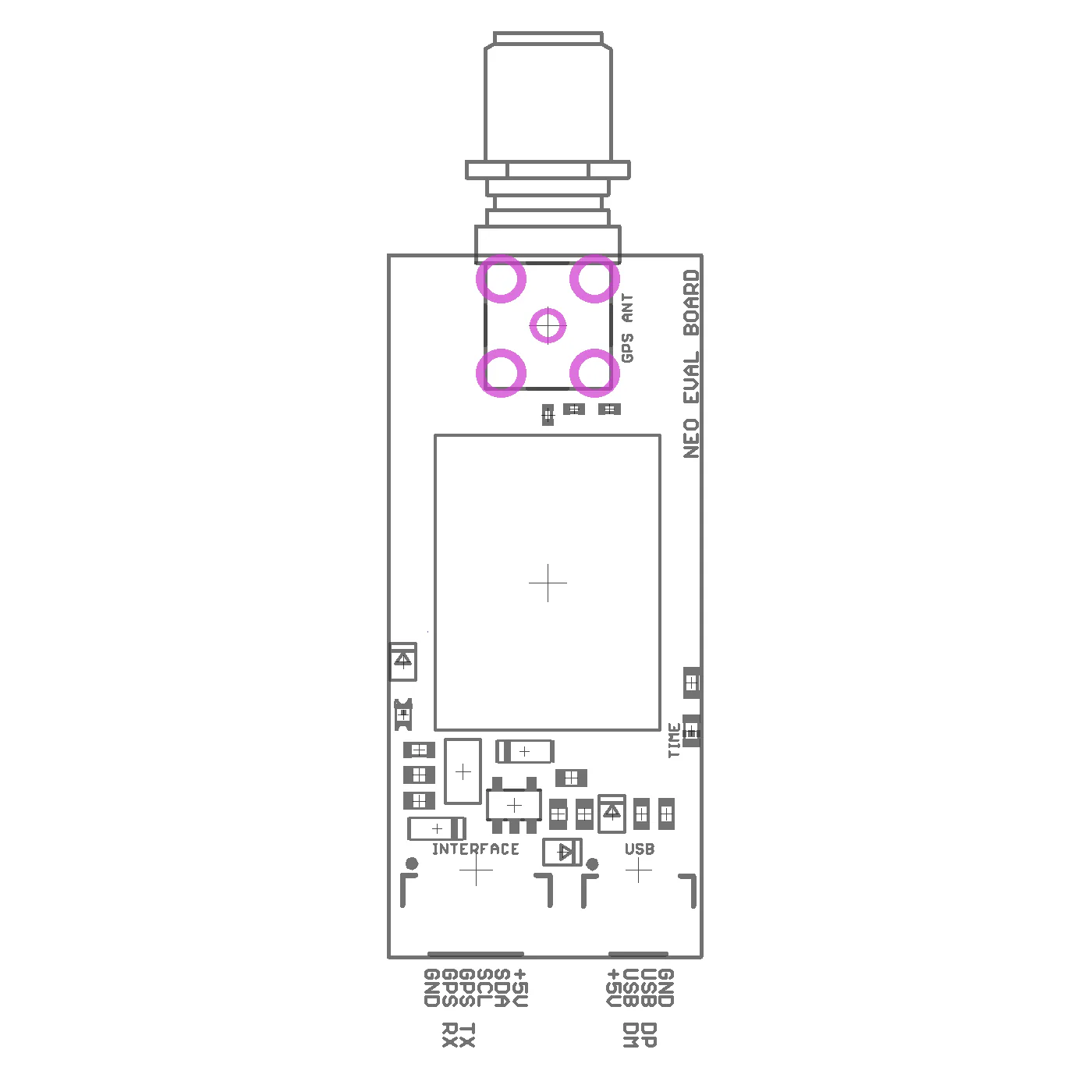

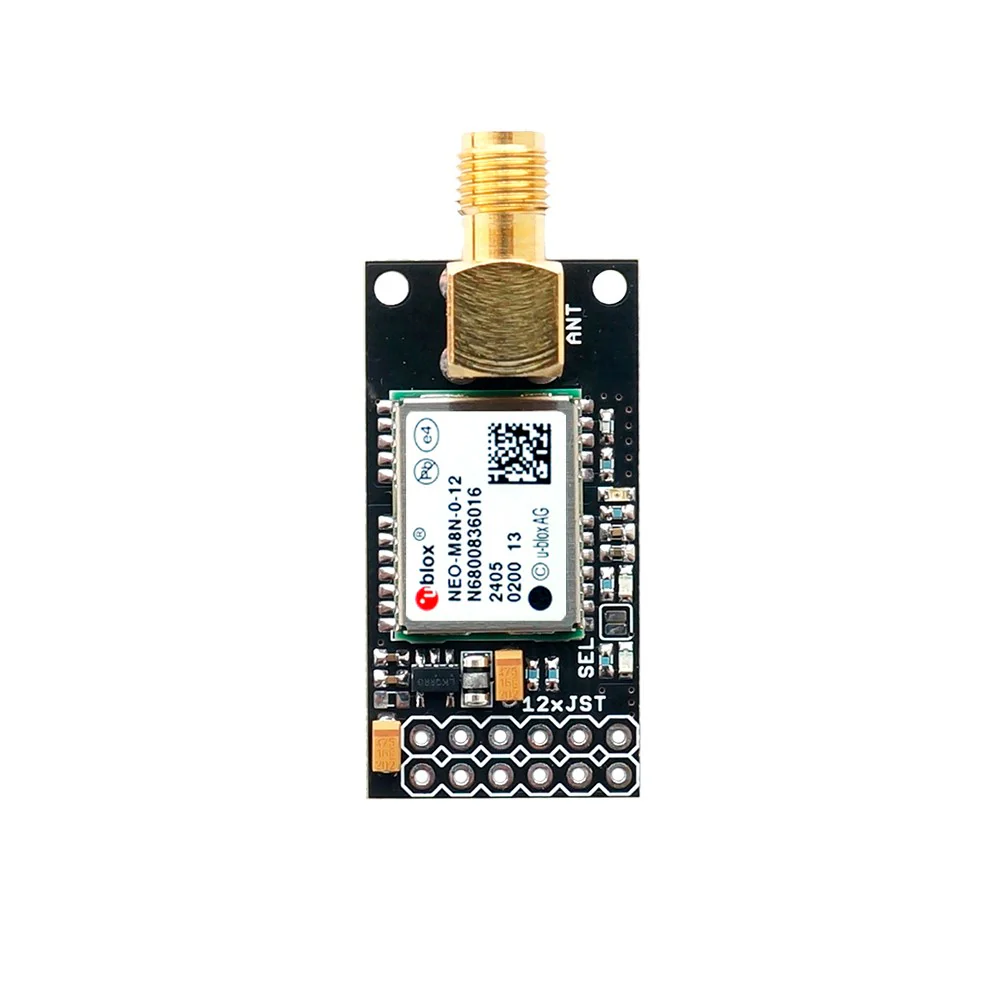

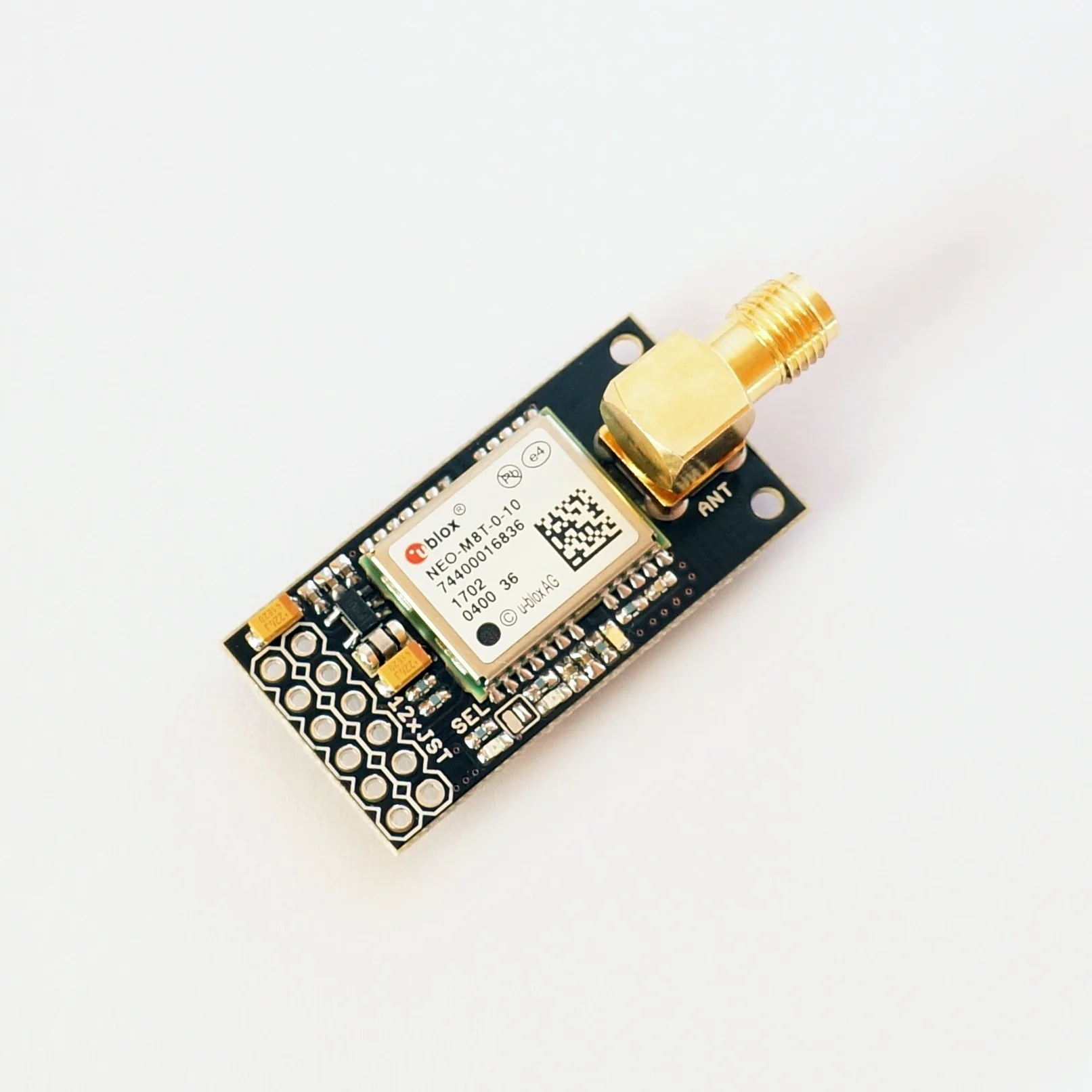

NEO-M8N GPS GNSS receiver board with SMA for UAV, Robots
NEO-M8N Reference Board with SMA antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light.
The NEO-M8N Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M8N with SMA antenna connectors.
- 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (NEO-M8N)
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator
- USB, I2C (SDA, SCL) and UART (Tx, Rx)
- SMA antenna connector
- 6 pin and 4 pin JST SH connectors
- u-center ublox Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)

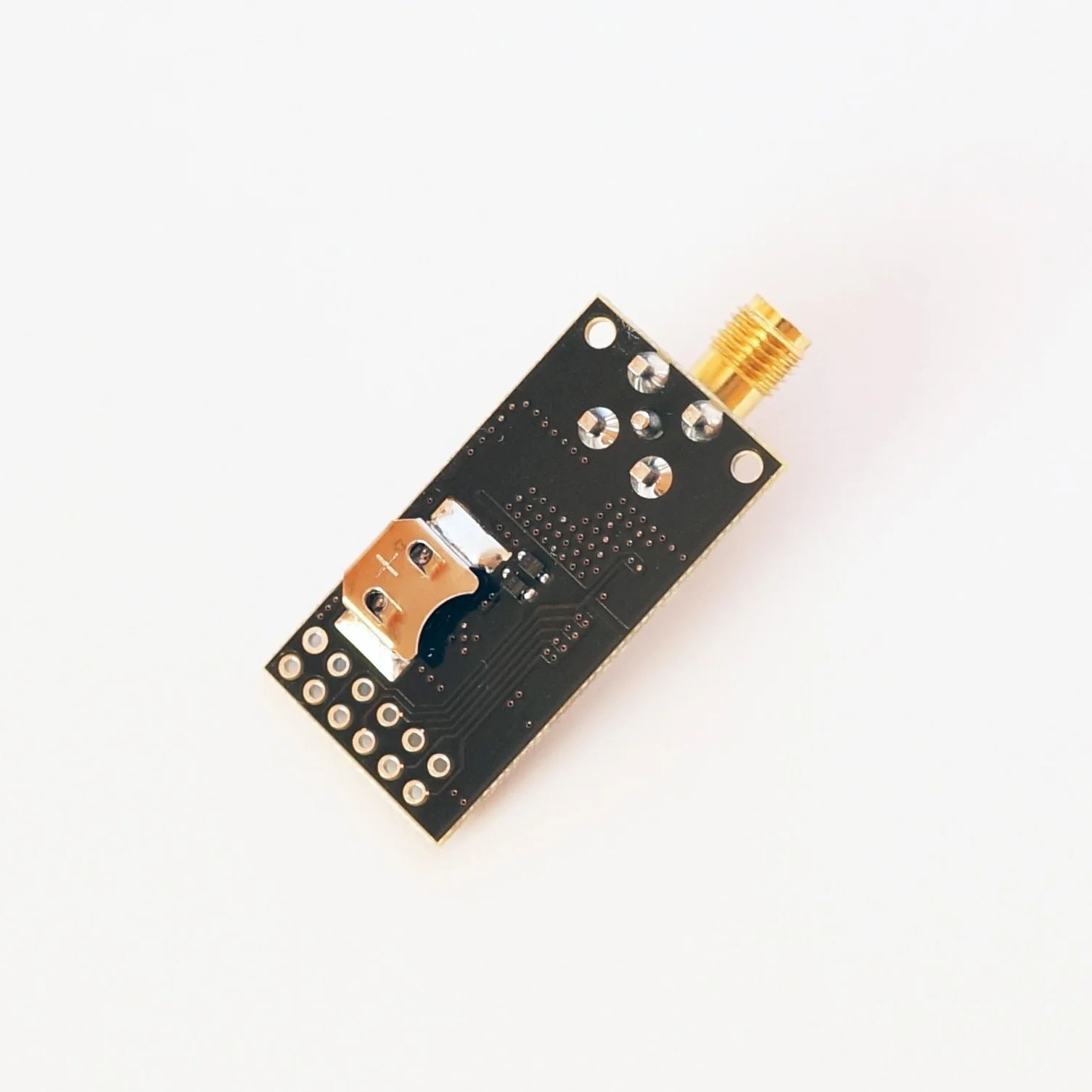

- Battery holder for HOT module start
- Dimensions: 40x18 mm
- Weight: 8.1 gr.
- Fully assembled and ready to use
